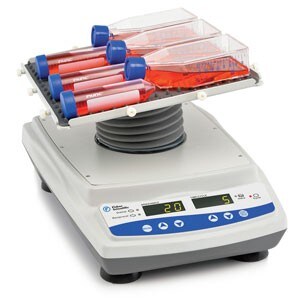

Fisherbrand Multi Function 3D Rotator

Fisherbrand_Multi_function_3D_rotator_v2

The Fisherbrand Multi Function 3D Rotator provides flexibility of motion to include rotation, reciprocal rotation, and vibration

  • Rotation speed: 5 to 100rpm for long wave motion
  • Reciprocal rotation: 0 to 360° turning angle for long and medium way motion
  • Vibration: 0 to 5° turning angle, programmable in bursts of 0 to 5 seconds, for short wave motion
  • Operating temperature range of 5 to 40°C allows for use in refrigerators or non-CO2 incubators
  • Continuous or timed operation with automatic switch-off
  • Display will show last used settings, even after power has been turned off
  • Applications include
    • Immunoprecipitations
    • Affinity matrix
    • Gel staining and destaining
    • Antibody staining
    • General washing
    • Hybridisations
    • Western and Southern blots
  • Two year warranty
Ordering information
Specification
Cat. No15514080
Plug typesEU, UK, CN
Electrical100-240V, 0.1A, 5W, 50/60Hz
Speed range5-100rpm
Speed accuracy±1rpm
Turning angle (reciprocal mode)0 to 360o
Turning angle (vibration mode)0-5o
Tilt angle7o
Orbit diameter23mm (0.9 inch)
Timer (orbital/360° vertical or reciprocal mode)0 to 250 sec.
Timer (vibration mode)0-5 sec (vibration) with 0-125 cycles
Number of cycles0 to 250 sec.
Operating temperature5 to 40oC
Maximum weight capacity1kg (2.2lb)
DisplayLED
Platform dimensions (working area) (D x W)306 x 266mm, 12 x 10.5 inch
Overall dimensions (L x W X H)415 x 293 x 225mm, 16.3 x 11.5 x 8.9 inch
Power supply100-240V
Unit includes:Dimpled rubber mat & six tube-securing bands
